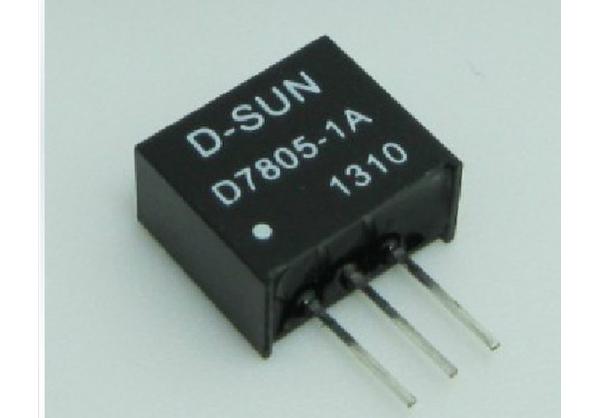

: Large Image:D7805-1A DC-DC power module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0318
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

D7805-1A DC-DC power module

Product description:

● can directly replace the LM7805, a large current without heat;

● When 6.5V input efficiency up to 95%;

● Wide input voltage 6.5V ~ 21V;

Technical parameters:

Model Specifications: D7805-1A DC-DC step-down module

Module Properties: non-isolated step-down (BUCK)

Rectification: Non-Synchronous Rectification

Input Range: 6.5V ~ 21V

Output Range: Typical: 5V; minimum 4.9V, 5.1V maximum

Output Current: 1A, the input voltage is greater than 13V, 800mA output current

Conversion efficiency: <95% (the greater the pressure, the lower the efficiency)

Input capacitance: 10uF/25V X7R ceramic capacitors

Output Capacitance: 22uF/16V X7R ceramic capacitors

Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)

Load regulation: ± 0.5%

Voltage regulation: ± 0.5%

Working temperature: -40 ℃ ~ +85 ℃

Dimensions: 11.5mm * 9.5mm * 6mm (excluding pin size)
