KIS3R33S 7V-24V turn 5V/3A synchronous rectification DC-DC step-down power module

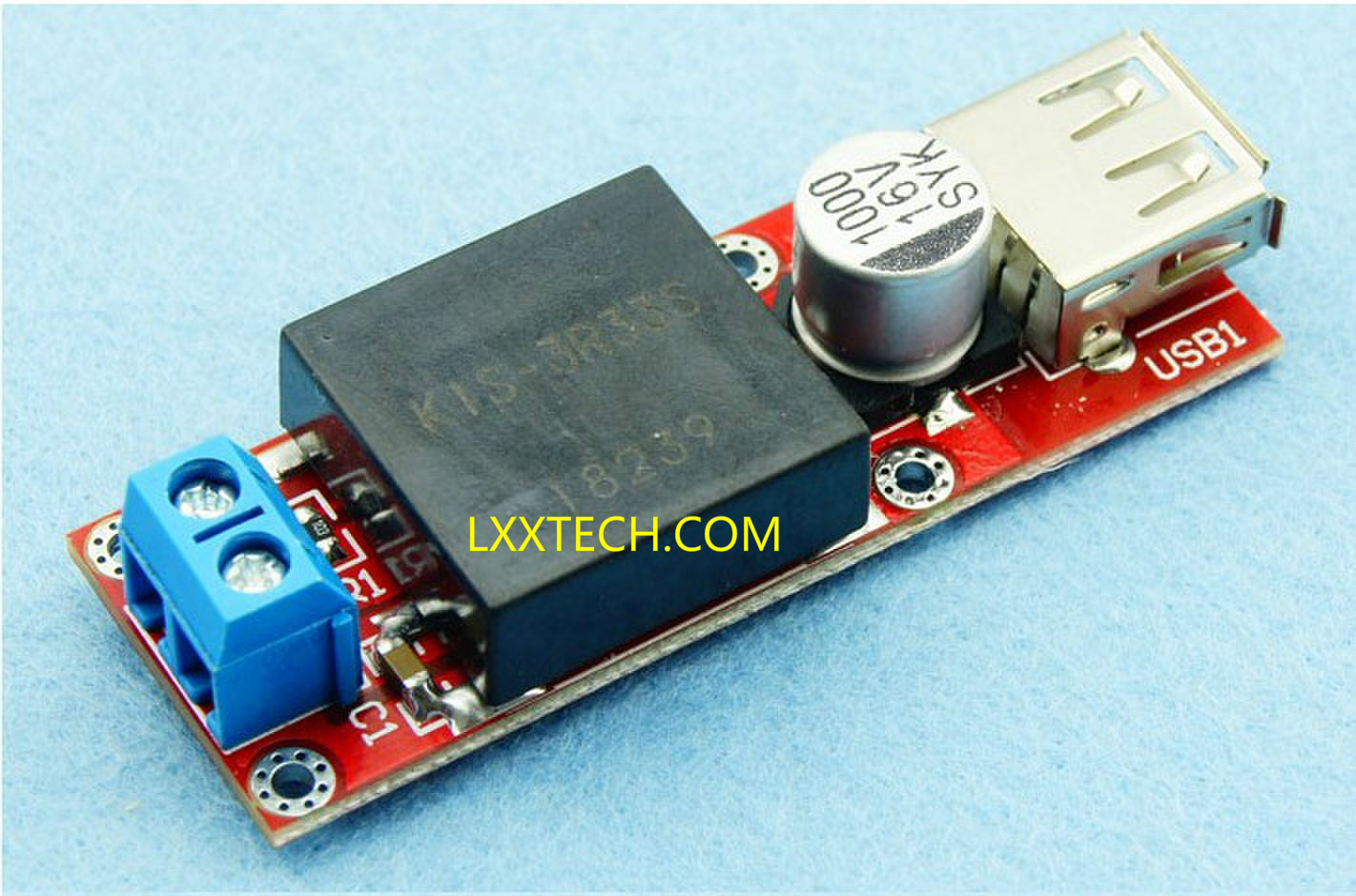

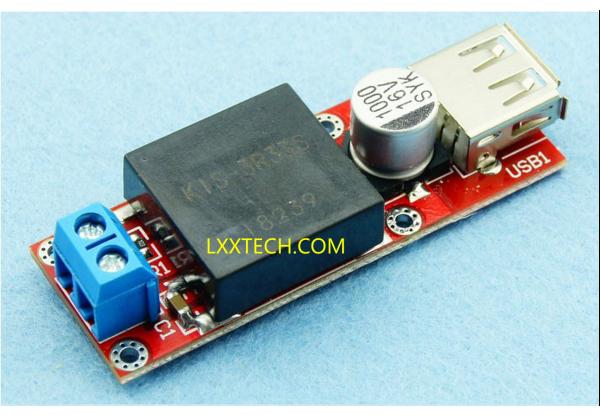

: Large Image:KIS3R33S 7V-24V turn 5V/3A synchronous rectification DC-DC step-down power module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0328
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

KIS3R33S 7V-24V turn 5V/3A synchronous rectification DC-DC step-down power module

☆ ☆ basic properties:

Module Properties: non-isolated step-down (BUCK)

Rectification: synchronous rectification

Input voltage: 7V-24V

Output Voltage: 5V

Output Current: 4A (short)

Conversion efficiency: 96% (maximum)

Switching Frequency: 340KHz

Output ripple: 30mV (max)

Load regulation: ± 0.5%

Voltage regulation: ± 2.5%

Working temperature: -40 ℃ to +85 ℃

External dimensions: 60 * 21 * 14 (L * W * H) (mm)

Product Features:

★ The power module is based on the Japanese origin of KIS3R33S module-specific design, the input voltage of 7V to 24V output voltage 5.01V, 2.5A continuous output current of 4A peak output! Able to provide 3A continuous load current. Professional testing by the majority of players, with ultra-efficient, ultra-low loss characteristics, perfect beyond lm2596 power module

★ This module has a USB recognition, the perfect support IPHONE4 IPAD, NOKIA N8 series phones

★ This module uses the original Sanyo low ESR filter capacitor ripple voltage as low as possible so 30mV, fully capable and linear power comparable!

Instructions / Notes:

★ modules indicated above IN-(negative input), IN + (positive input), OUT-(negative output), OUT + (positive output) be sure to pick the correct, otherwise it may cause damage to the module.

★ This module has short circuit protection, 5A current automatic protection.
