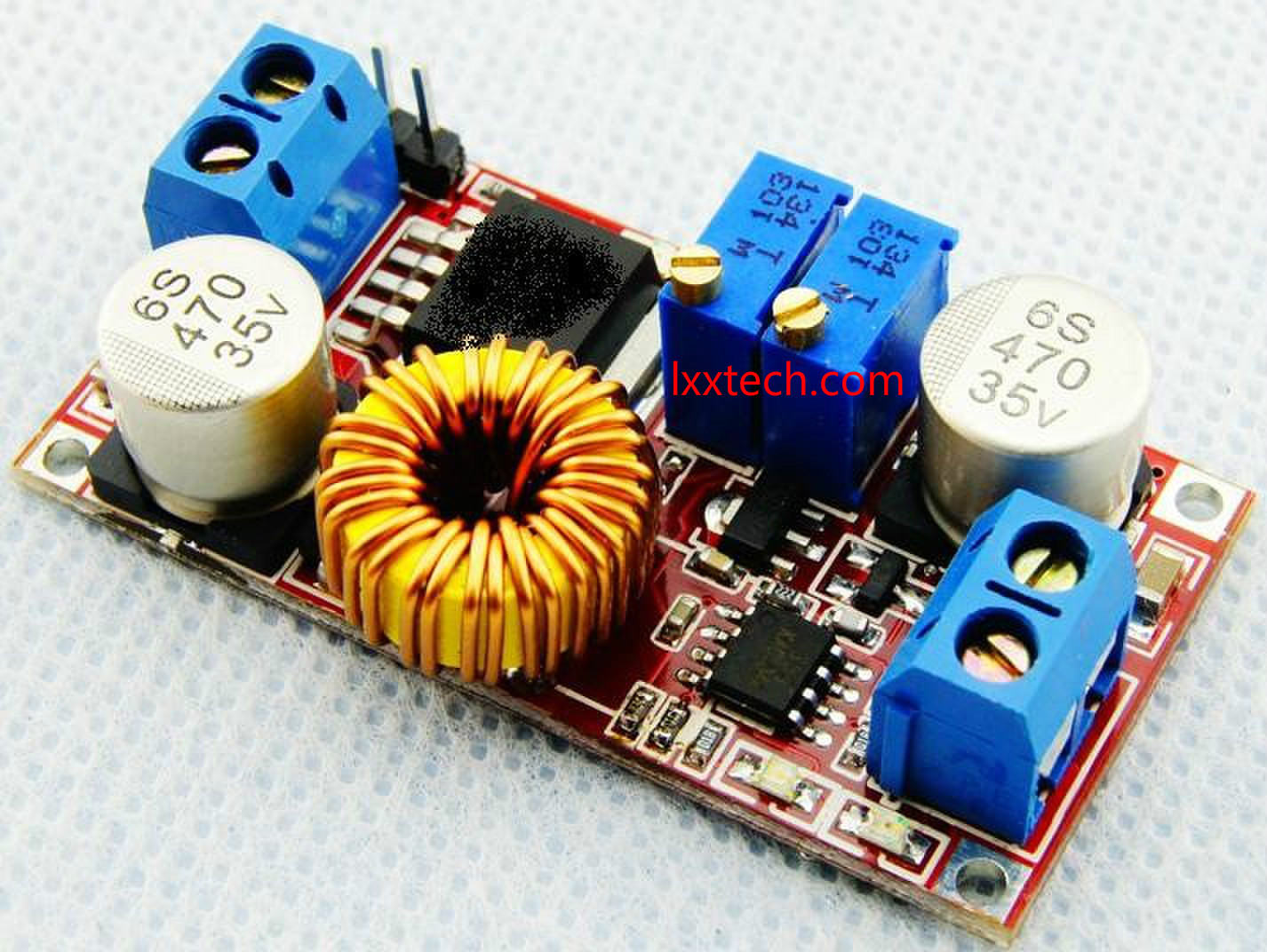

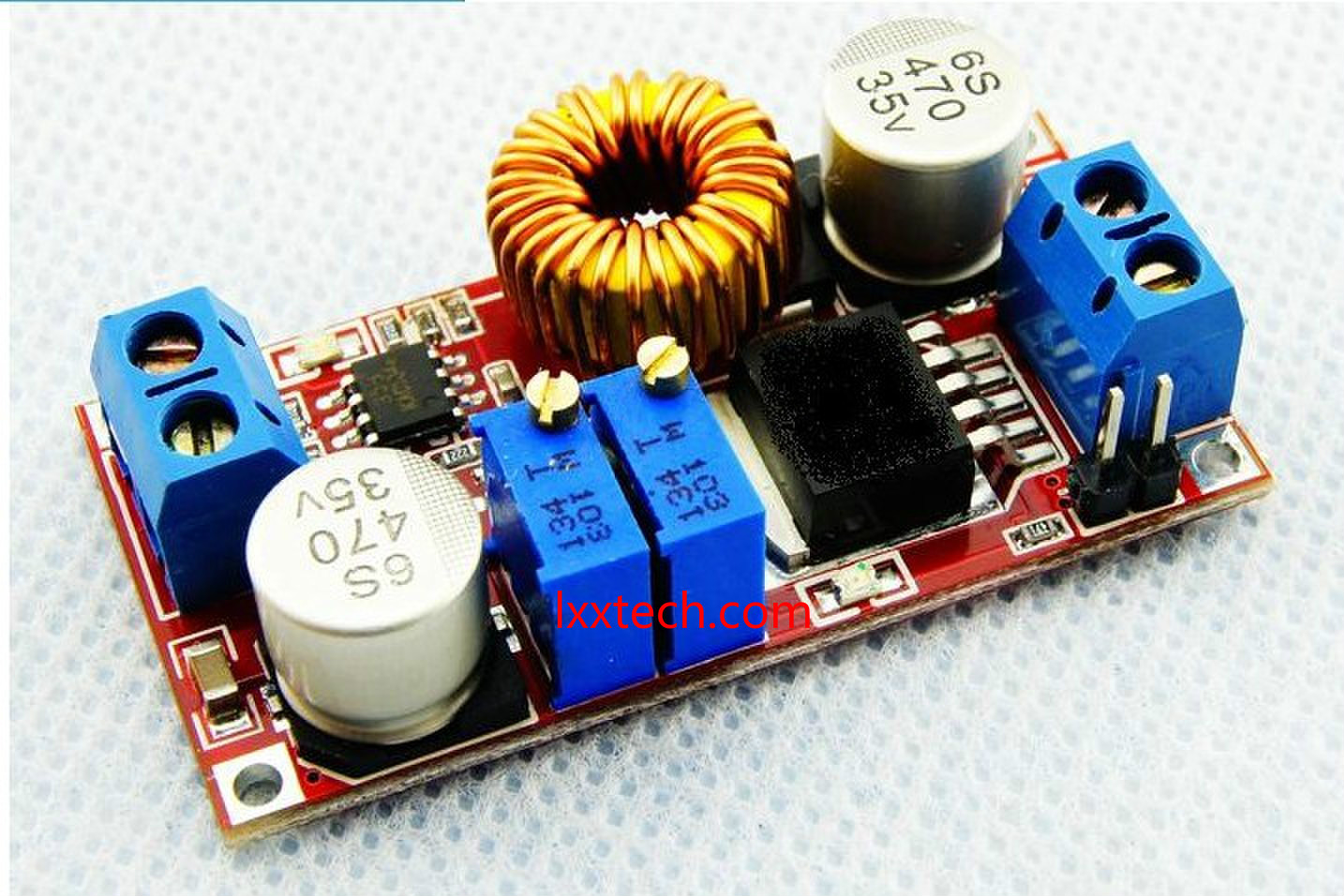

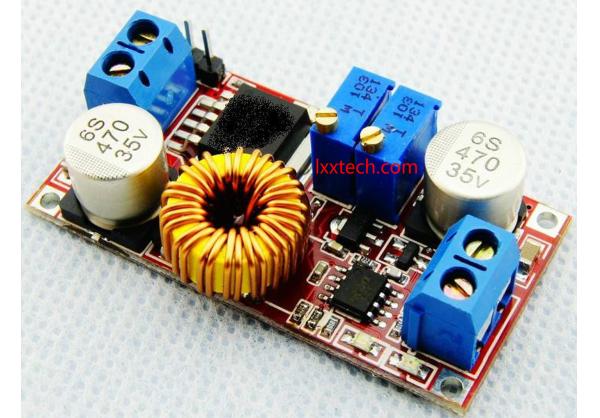

Large current 5A constant current LED driver lithium-ion battery module

: Large Image:Large current 5A constant current LED driver lithium-ion battery module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0327
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

☆ basic properties☆

Module Properties: non-isolated step-down module

Rectification: Non-Synchronous Rectification

Input voltage: 5V-32V

Output voltage: 0.8V-30V

Output Current: Adjustable Maximum 5A

Conversion efficiency: 95% (maximum)

Switching Frequency: 300KHz

Output ripple: 50mV (maximum) 20M-bandwidth

Load regulation: ± 0.5%

Voltage regulation: ± 2.5%

Working temperature: -40 ℃ to +85 ℃

Size: 51 * 26.3 * 14 (L * W * H) (mm)

Product Features:

★ modules use high-quality imported chips, high efficiency (up to 95%), while low heat, you can go to 5A maximum current, in conjunction with the original TI op amp control the output current, the overall output is very stable.

★ This module uses the original Sanyo low ESR filter capacitor voltage as low as possible so that the ripple 50mV!

★ This module uses machine placement, reflow soldering, and each module before shipment after two hours of aging test, to ensure high reliability.

Product Tag : 5A constant current LED driver lithium-ion battery module
