usbasp usbisp avr download cable, 51/AVR/USB download cable, avrusb download cable

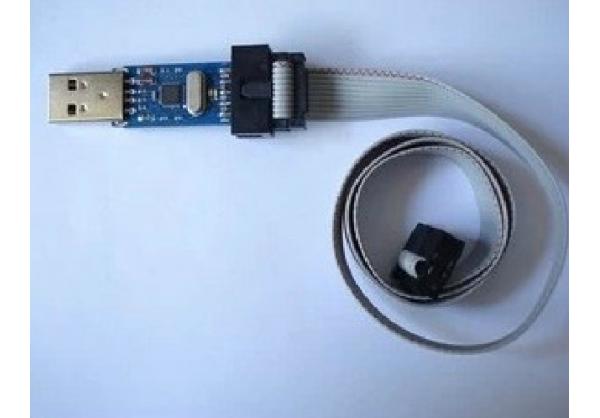

: Large Image:usbasp usbisp avr download cable, 51/AVR/USB download cable, avrusb download cable

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0538
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

usbasp usbisp avr download cable, 51/AVR/USB download cable, avrusb download cable

USBASP Download Features:

1, support USB1.1 or USB2.0 communication.

2, support WIN98, WINME, WIN2K, WINXP other operating systems.

3, using USB port power supply, power output has 500MA self-recovery, which can effectively prevent a short circuit on the USB outside influence, the target board can simultaneously power supply with USB.

3, the download is complete does not affect the operation of the target board.

4, support for S51 and the AVR chip burn, faster than parallel ISP faster, more stable; there is no parallel port, and the best choice for laptop computer use.

5, using the latest version of the ultra-stable firmware, no jumper selectable low-speed download, download faster, more stable.

6, the use of standard interfaces IDC10

Does not support WIN7!

AT89S51 S52 series and the corresponding pin download cable connection definition:

MOSI -> P1.5

MISO -> P1.6

SCK -> P1.7

/ RES -> RST

GND -> GND

5V -> VCC

Downloader supports programming of the chip:

51 Series

AT89S51 AT89S52

AVR Series

AT90can128 AT90can32 AT90can64 AT90pwm2 AT90pwm3 AT90s1200 AT90s2313 AT90s2323 AT90s2343 AT90s4414 AT90S8515 AT90S8535 AT90usb1286 AT90usb1287

Atmega103 Atmega128 Atmega1280 Atmega1281 Atmega16 Atmega161 Atmega162 Atmega163 Atmega164 Atmega165 Atmega168 Atmega169 Atmega2560 Atmega2561 Atmega32 Atmega323 Atmega324 Atmega325 Atmega3250 Atmega3259 Atmega329 Atmega3290 Atmega406 Atmega48 Atmega64 Atmega640 Atmega644 Atmega645 Atmega6450 Atmega649 Atmega6490 Atmega8 Atmega8515 Atmega8535 Atmega88

Attiny11 Attiny12 Attiny13 Attiny15 Attiny22 Attiny2313 Attiny24

Attiny25 Attiny26 Attiny261 Attiny28 Attiny44 Attiny45 Attiny46

Attiny461 Attiny84 Attiny85 Attiny861
